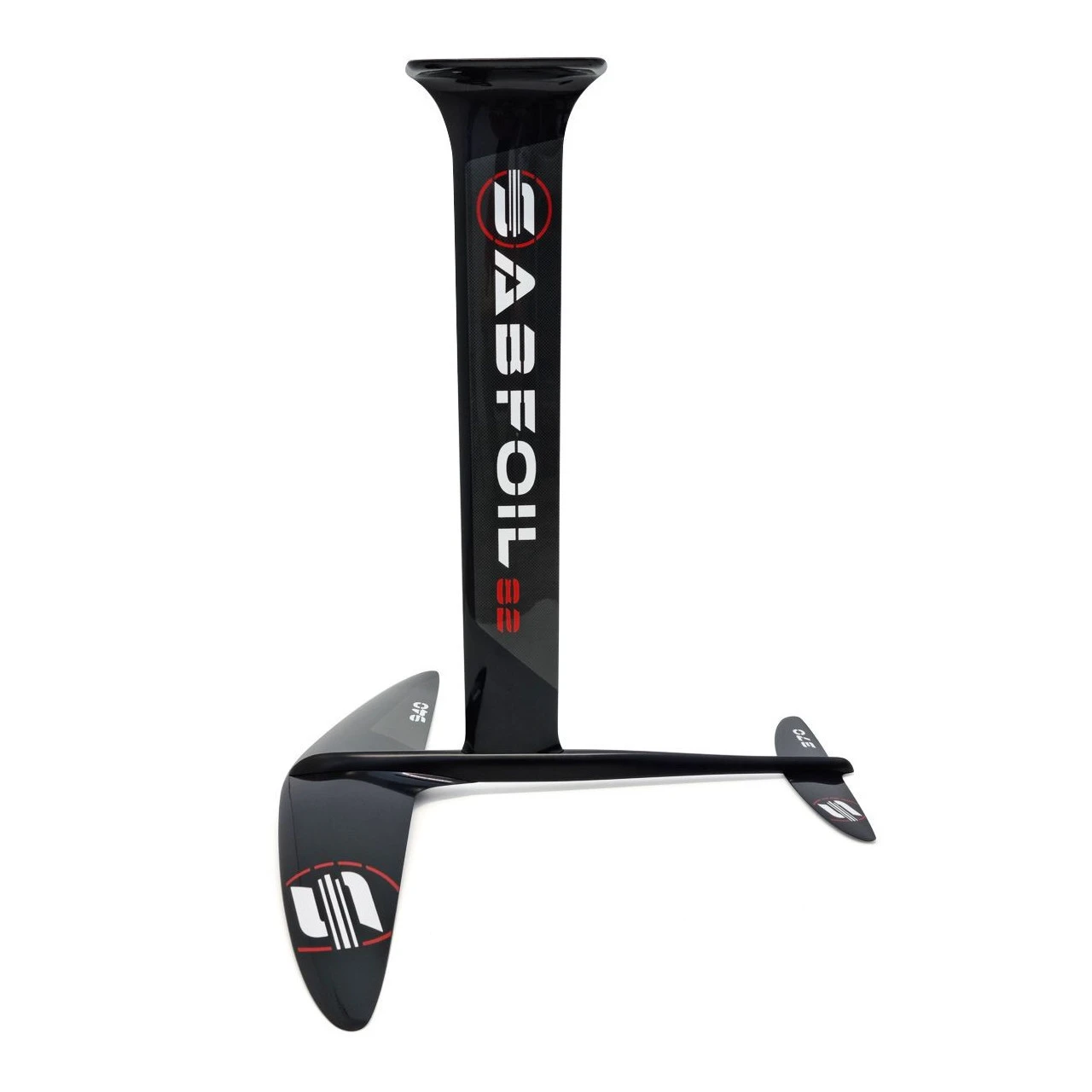

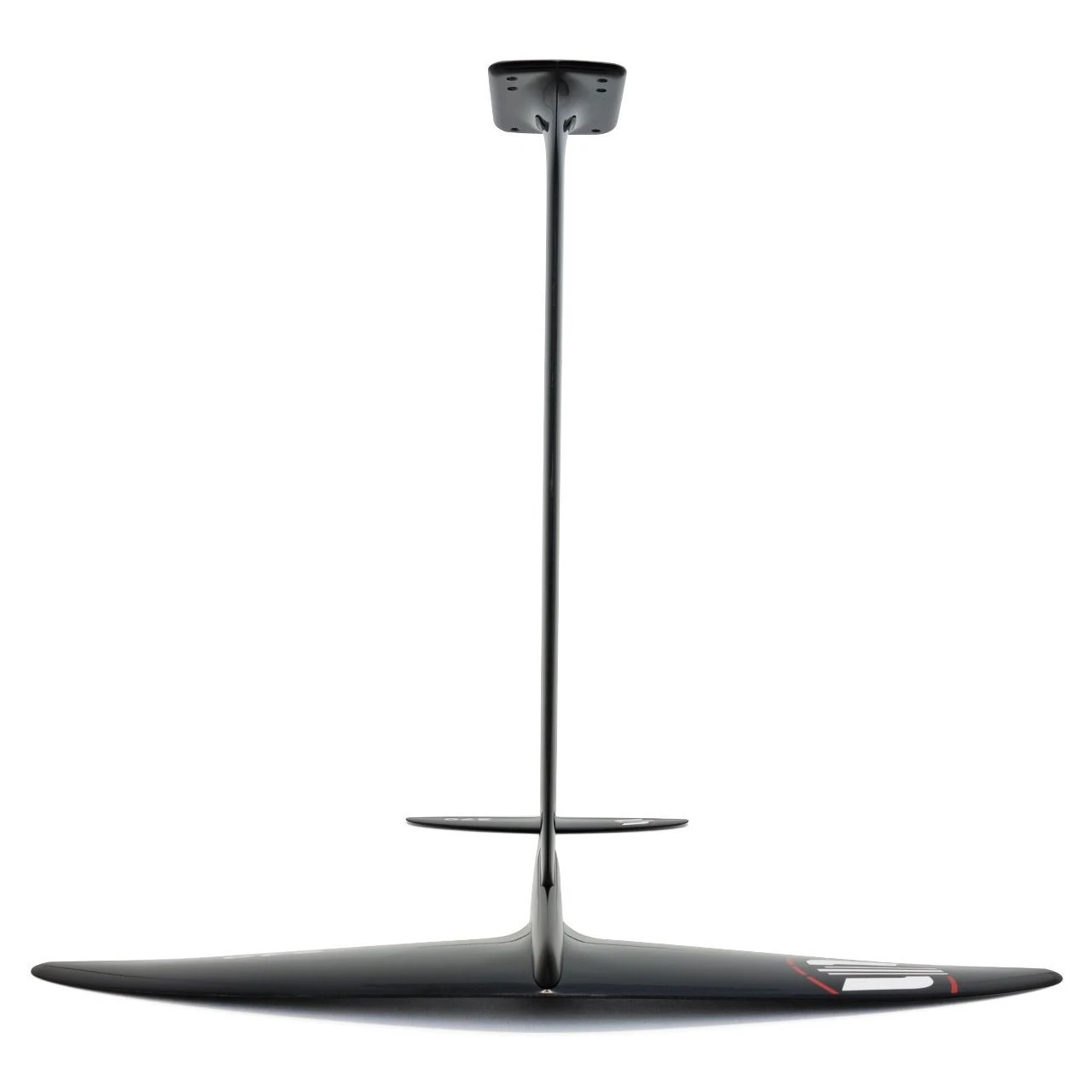

SABFOIL M82 W940/S370 Carbon Foil Set

SABFOIL M82 W940/S370 Carbon Foil Set

KIT M82 – W940 – S370 – F700-HS CARBON ONDA

What’s Included:

• M82 – Mast 82 Carbon – Plate Kite/Surf
• W940 – Front wing 940 Surf – 1100 CM2
• S370 – Stabilizer 370 mm Surf
• F700-HS – Fuselage 700-HS
• MH107 – 2x Flat Head Screws Torx M6x16
• MH111 – 2 x Socket Head Cap Screws M6x30 and Washers
• MH133 – 3x Flat Head Screws Hex M8x30
• Torx, hex tip, grease
• Instructions

What SABFOIL has to say about the M92 W799BP/S399 Foil Set

New kit S82940 born for pure surfing!

The new W940 (1100 cm2 surface area) and S370, with their flat design and the right surface dimension will allow you to surf waves at high speed with high maneuverability.

Specifications

Base Plate Joint	90 x 165 mm
Mast Height	820 mm
Front Wing Span	940 mm
Front Wing Root Chord	165 mm
Front Wing Aspect Ratio	8
Front Wing Surface	1100 cm2
Stabilizer Span	370 mm
Stabilizer Root Chord	67,5 mm
Stabilizer Aspect Ratio	7
Stabilizer Surface	195 cm2
Fuselage Length	700 mm
Kit Weight	3815 g [±5%]
