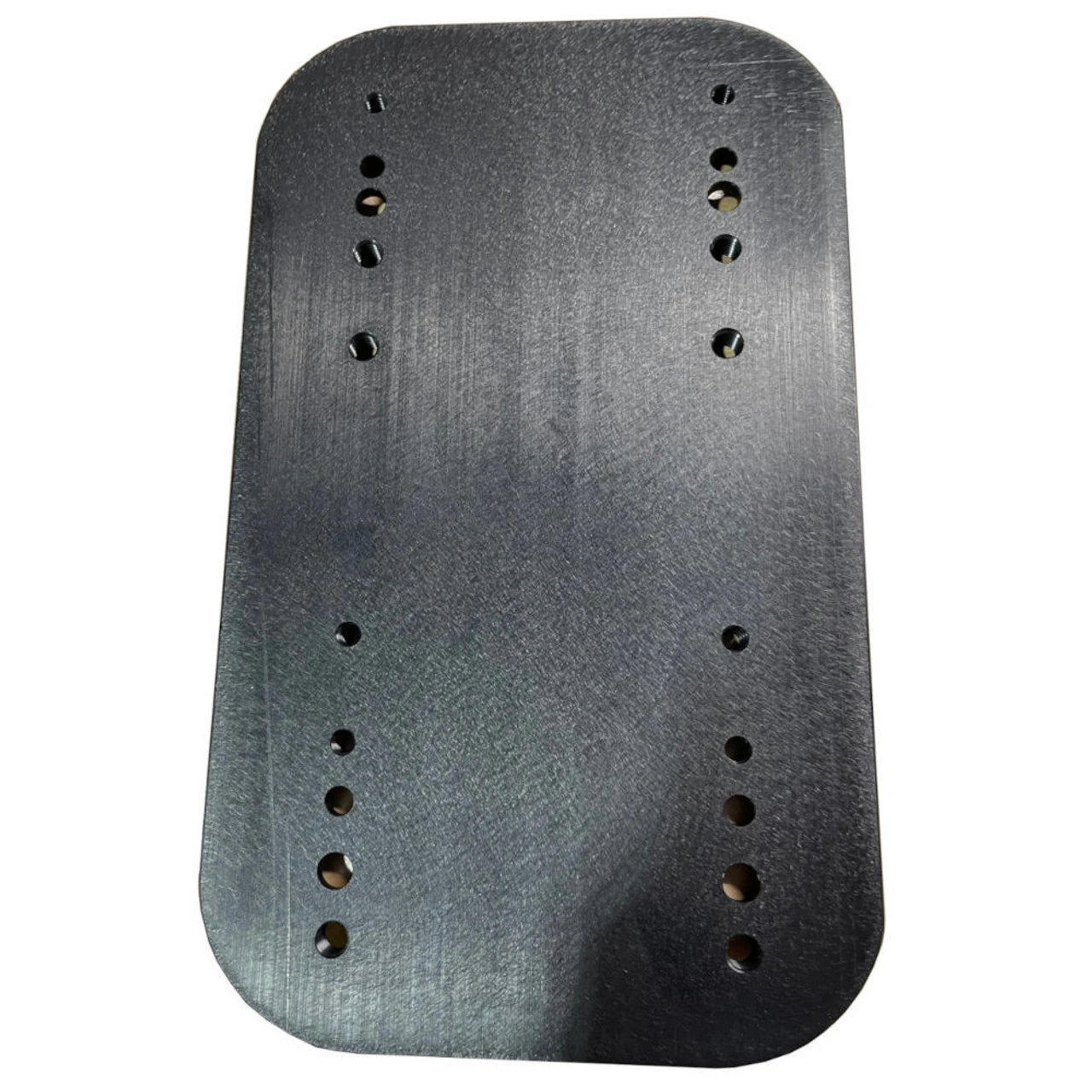

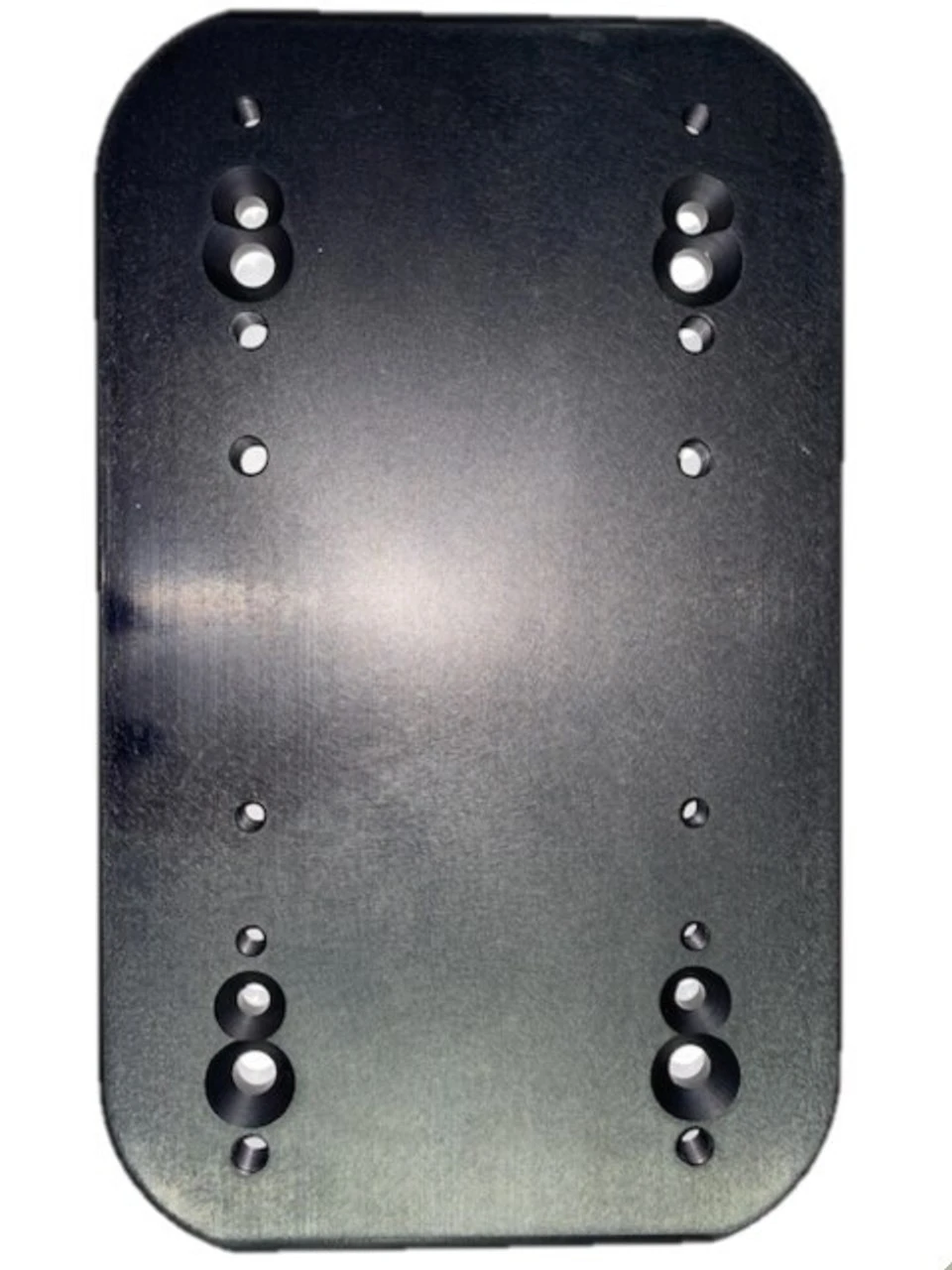

Stringfellow Adaptor Plate

Ever been frustrated with the lack of compatibility between foils and boards? Us too, and we finally have a solution for you! This plate is designed to accommodate a fixed foil mount board.

If you have an inflatable F-one board this is the perfect solution to make any foil work on your board.

IMPORTANT: Finding Hardware

Board to plate connection: Board to plate connection is the same hardware supplied with the foil for a track style board. You’ll need a countersunk style screw if it is not already. For insert fixed pattern boards, use normal screw length minus 10mm.
Plate to foil connection is 10mm less than the standard mounting screw length.
Our website has common foil screws available by spec. They ship for free with your adapter purchase.

This plate is compatible with boards with the following mounting specifications:

M6 90x165mm
M6 90x140mm
M6 90x160mm
M8 90x165mm
M8 90x140mm

This plate is compatible with foils with the following mounting specifications:

M6 90x165mm
M6 90x140mm
M8 90x165mm
M8 90x140mm

Brand Spacing Specifications

Brand	Spacing (Wide)	Spacing (Middle)	Spacing (Narrow)
Slingshot	165 x 90	120 x 90
GoFoil	165 x 90
F-One	165 x 90	160 x 90
NP	140 x 90
Axis	165 x 90	140 x 90	115 x 90
Takuma	165 x 90
MFC	150 x 90
Naish	165 x 90
